BLD-CU3503AF

Description

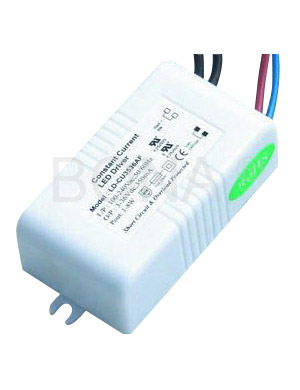

Constant Current LED Driver for High Power LED

- Compact size in 65 x 35 x 23mm

-100-240V AC

- Short circuit protection

- Overload protection

- Suitable to all colors of standard and custom high powder LEDs

- Models for 1x1W, 2 x 1W, 3 x 1W ... 8 x 1W LED (350mA) in series available

- Models for 1x 3W, 2 x 3W, 3 x 3W high power LED (700mA) in series available

- UL,CUL,CE,RoHS compliant

- Working Temperature:-10 - 40 centigrade

Specification

Item Code: BLD-CU3503AF

Input:100-240V AC / 50Hz (or 60Hz)

Output:3-12V DC

Wattage:1-3W

Current: 350mA

---------------------------------------------------------------------------------------------------------

Item Code: BLD-CU3536AF

Input:100-240V AC / 50Hz (or 60Hz)

Output:3-36V DC

Wattage:1-8W

Current: 350mA

---------------------------------------------------------------------------------------------------------

Item Code: BLD-CU7006F

Input:100-240V AC / 50Hz (or 60Hz)

Output:3-12V DC

Wattage:3-6W

Current: 700mA

--------------------------------------------------------------------------------------------------------

Item Code: BLD-CU7021AF

Input:100-240V AC / 50Hz (or 60Hz)

Output:3-21V DC

Wattage:3-9W

Current: 700mA
