BLD-CU3512-06
Description

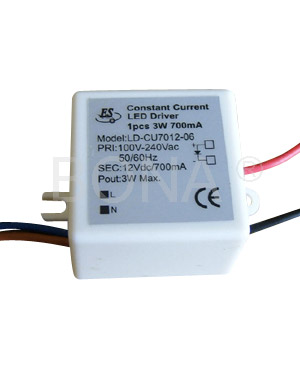

Constant Current LED Driver (Drive 1-8 1W LED)
-Overall size:36.5 x 29 x 22mm
-With universal input voltage from 100V~240V for worldwide use
-Drives LED with constant current
-Short circuit protection and overload protection
-Designed to drive 1-2 x 1W LED (350mA),or 1x3W LED(700mA)
-UL,CUL,CE,RoHS compliant
-Opertation temperature:-10-40 Centigrade
Specification
ITEM CODE: BLD-CU3512-06
Input:100-240V AC / 50Hz (or 60Hz)
Output:3-12V DC
Wattage:1-2W
Current: 350mA
---------------------------------------------------------------------------------------------------------
ITEM CODE: BLD-CU7012-06
Input:100-240V AC / 50Hz (or 60Hz)
Output:3-12V DC
Wattage:3W
Current: 700mA
