BLD-CU351201

Description

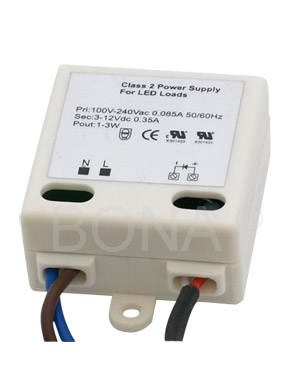

Constant Current LED Driver for High Power LED

- Compact size in 40 x 50 x 21mm

-100-240V AC

- Short circuit protection

- Overload protection

- Suitable to all colors of standard and custom high powder LEDs

- Models for 1x1W, 2 x 1W, 3 x 1W (350mA) in series available

- Models for 1x 3W, 2 x 3W high power LED (700mA) in series available

- UL,CUL,CE,RoHS compliant

- Working Temperature:-10 - +40 centigrade

Specification

ITEM CODE: BLD-CU3512-01

Input:100-240V AC / 50Hz (or 60Hz)

Output:3-12V DC

Wattage:1-3W

Current: 350mA

---------------------------------------------------------------------------------------------------------

ITEM CODE: BLD-CU7012-01

Input:100-240V AC / 50Hz (or 60Hz)

Output:3-12V DC

Wattage:3-6W

Current: 700mA
