BLD-CU3554-04

Description

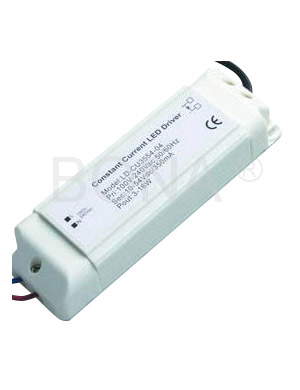

Constant Current LED Driver for High Power LED

- Compact size in 40 x 50 x 21mm

-100-240V AC

- Short circuit protection

- Overload protection

- Suitable to all colors of standard and custom high powder LEDs

- Models for 3-16x1W (350mA) in series available

- Models for 1- 6 x3W (700mA) in series available

- UL,CUL,CE,RoHS compliant

- Working Temperature:-10 - +80 centigrade



Specification

ITEM CODE: BLD-CU3554-04

Input:100-240V AC / 50Hz (or 60Hz)

Output:3-12V DC

Wattage:3-16W

Current: 350mA

Power Factor:0.99

---------------------------------------------------------------------------------------------------------

ITEM CODE: BLD-CU7034-04

Input:100-240V AC / 50Hz (or 60Hz)

Output:3-34V DC

Wattage:3-18W

Current: 700mA

Power Factor:0.99
